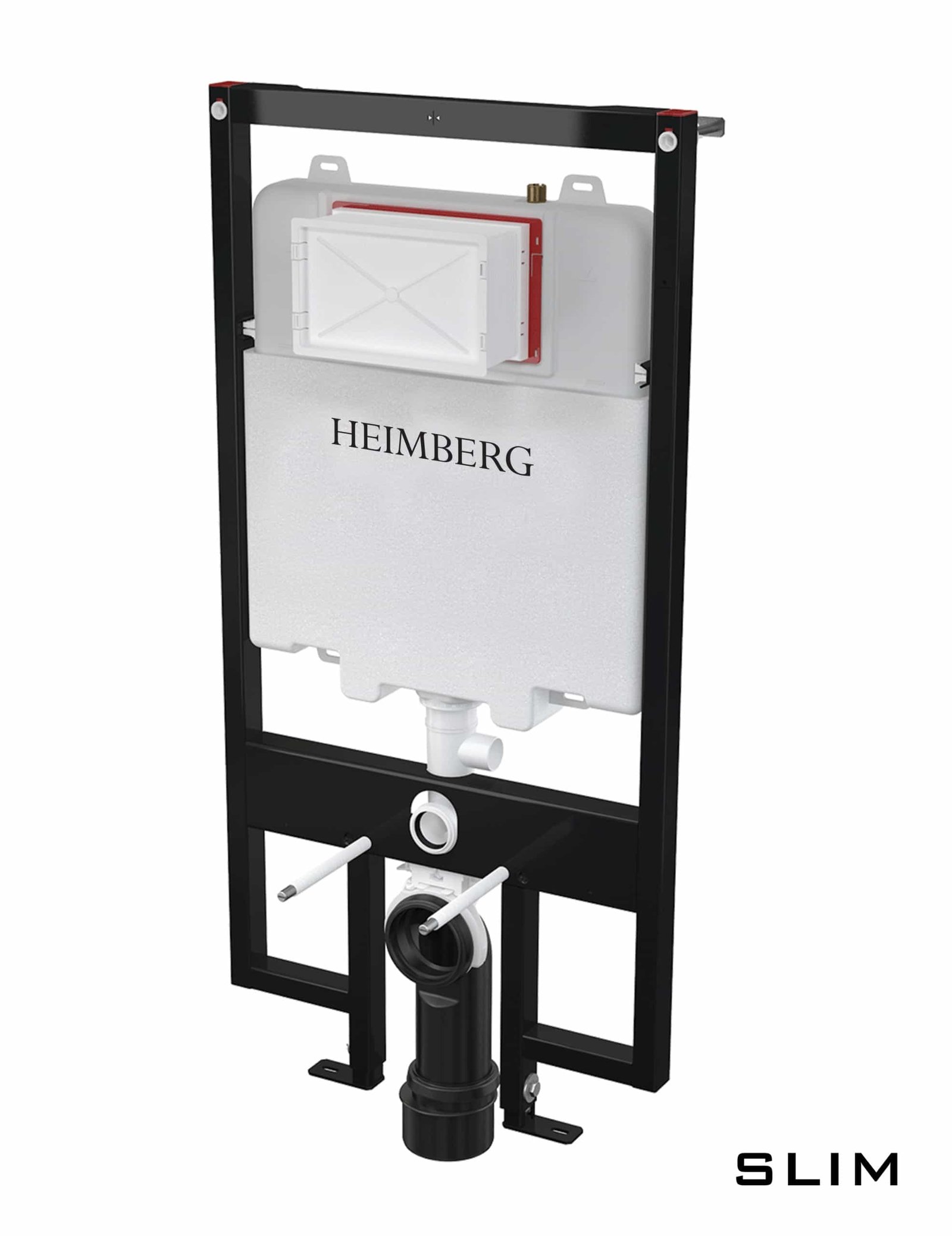

HEIMBERG PRO SLIM: PRE-WALL INSTALLATION SYSTEM FOR DRY BUILD UP (PLASTERBOARD).
Technical Data Sheet:HBC-PRO-1101-1200
Description
Product Model Number:HBC-PRO-1101-1200

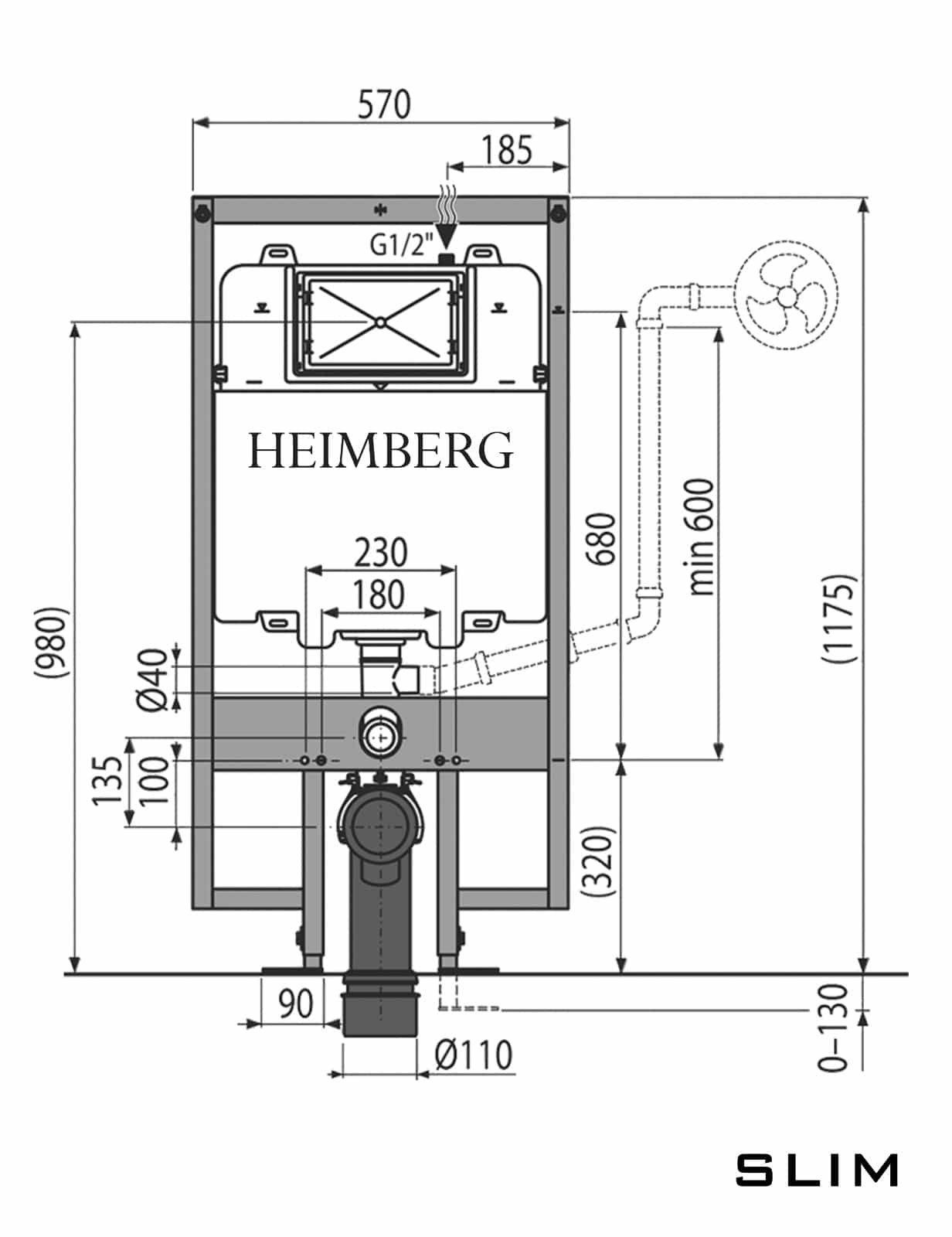

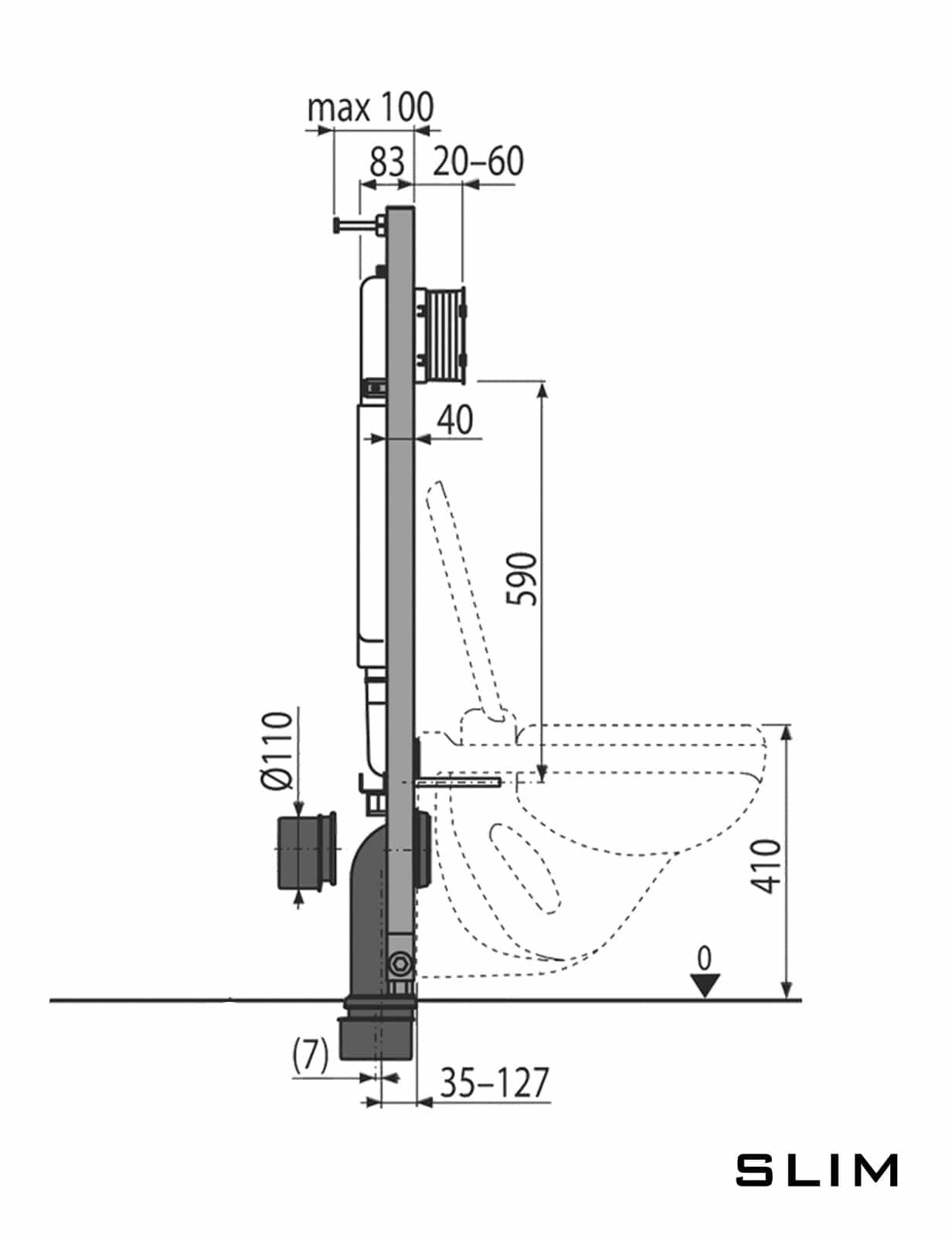

WC-mounting element with flushing cistern for operation from the front. Suitable for brick-lining and front-wall installation depth is only 84 mm
For mounting in front of a support wall or in to a plasterboard construction
For installation of wall hung WC pans with a connecting pitch of 180 mm or 230 mm
For floor thickness 0-100 mm
For wall-hung WC
Technical specifications
Recommended range of water pressure 0,3-0,5 MPa Functional range of water pressure 0,01,6 MPa Hygienic reserve 2 l
Small flush 2,5 -3,5 I
Water volume in the cistern 6 l
Water connection from the back or top via mounting holes G1/2 ” Factory setting of small flush 2 l
Factory setting of large flush 4 l big flush 3,5-6 l
Load test 400 kg
