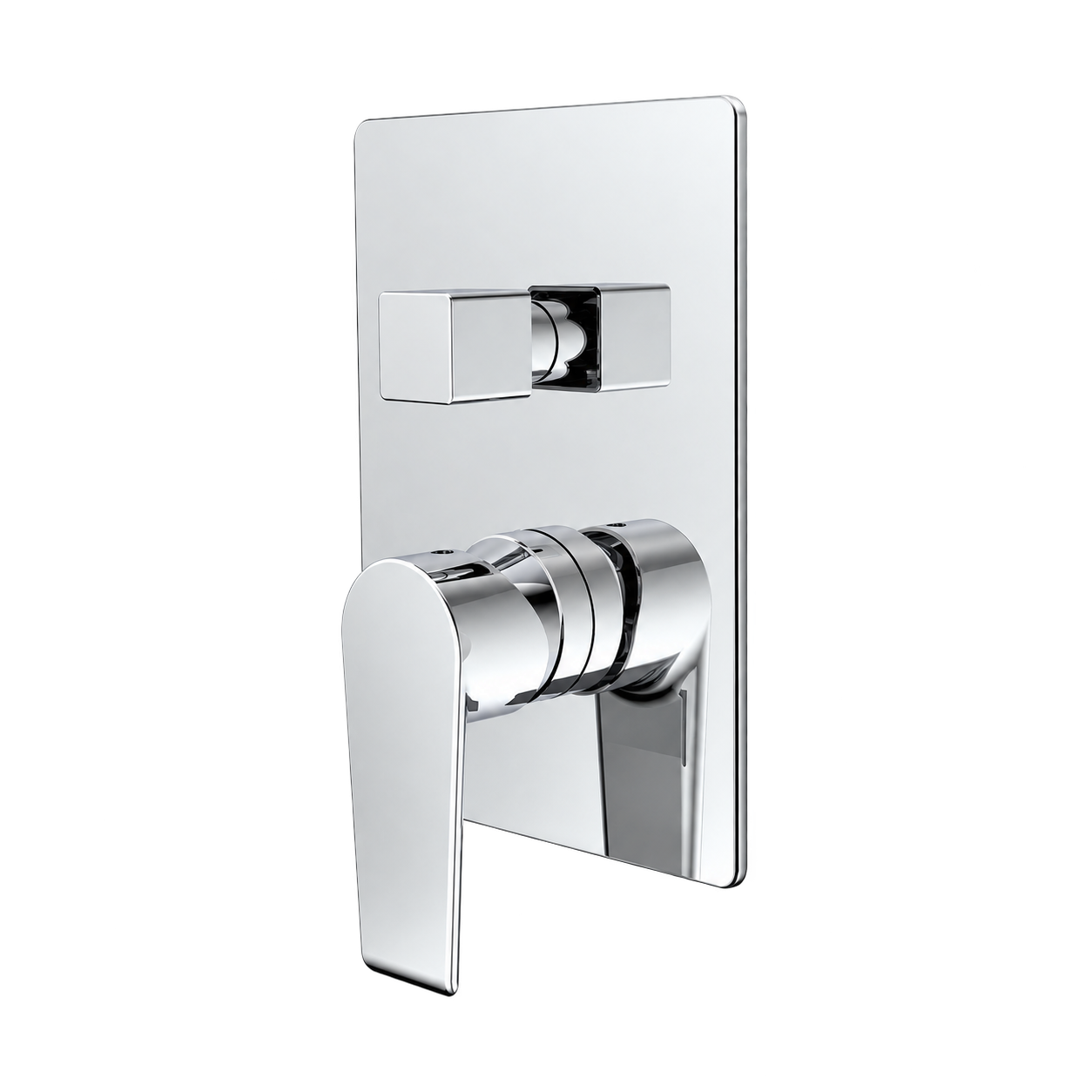

SINGLE LEVER CONCEALED BATH/SHOWER MIXER
Description
Product Mode Concealed shower mixer body without e-box
Material: Body: Brass, Cartridge：35mm Sedal Cartridge,
Neoperl Aerator, Inlet Pipe：60cm sus
Connection Size：1/2”
Recommended water pressure：0.5-5 bar
MAX Pressure：16 bar
Hot water inlet temperature 90℃
Recommended operating temperature (energy saving) ：45℃
Attention: If the static pressure exceeds 5bar, a pressure reducing valve must be installed to avoid the pressure
difference when the hot and cold water is supplied
Technical Information：
Mixer body
Single Level
Shape: Circle
Included：
Concealed shower mixer body
Fixed kit
Additional information
| Finish |
Chrome ,Brushed Nickel ,Matt Black ,Brushed Gold ,Matt Rose Gold |
|---|
Attachment
